CadSoft EAGLE Libraries

eBay parts

Footprints for components I've bought from eBay

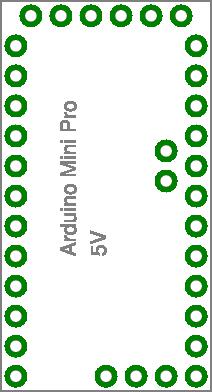

Arduini mini pro

Pay attention to the pad layout as there are a few slightly different versions on eBay.

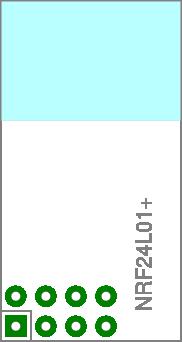

NRF24L01+ module

I've included a keepout block to prevent ground planes or traces from being routed under the antenna. I'm using this module for MySensor board.


Digikey, Jeff, and Pads

I'm cleaning up these libraries, currently I have some Freescale pressure sensors, 7-segment modules,and some minor surface mount components that I've used for some earlier projects such as Sump pump Monitor, 7-segment display module, and 50 Amp 5 Volt Power Supply.
