Relay board

SPDT JW1FEN relays from an old UPS.

Matches closest to Digikey Part# 255-1114-ND

JW Relay datasheet

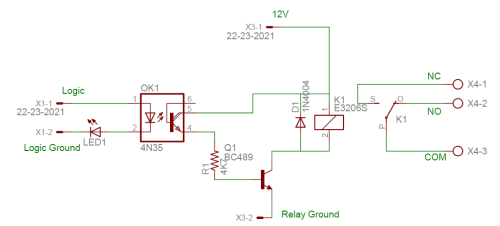

Schematic

Board layout

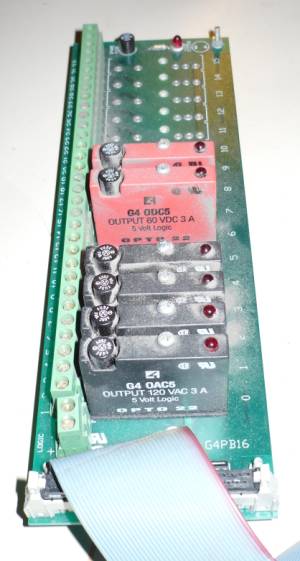

OptoRelay Board

G4PB16 - G4 16-channel I/O Module Rack

  • G4 ODC5 - G4 DC Output 5-60 VDC, 5 VDC Logic
  • G4 OAC5 - G4 AC Output 12-140 VAC, 5 VDC Logic

Want

  • G4 IAC5 - G4 AC Input 90-140 VAC, 5 VDC Logic
