Temperature sensing devices

ADT7410 Digital I2C Temperature Sensor

±0.5°C Accurate, 16-Bit Digital I2C Temperature Sensor

PinWire Colour
1SCLYellow
2SDABlue
3A0Gnd
4A1Gnd
5INTn/c
6CTn/c
8VddRed
7GndBlack

Need 0.1uF Cap between pins 7 & 8

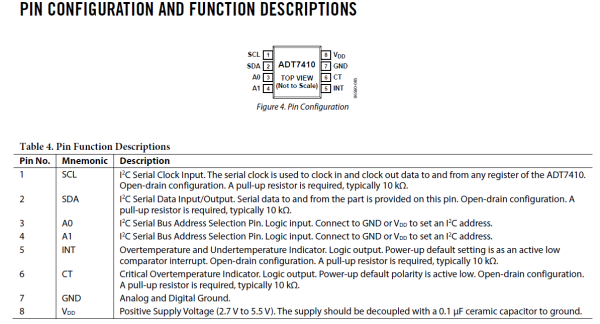

From Analog Devices, ADT7410 Datasheet

Thermopile sensor

10TP583T - 10TP583T Datasheet
