Barometric Pressure sensor

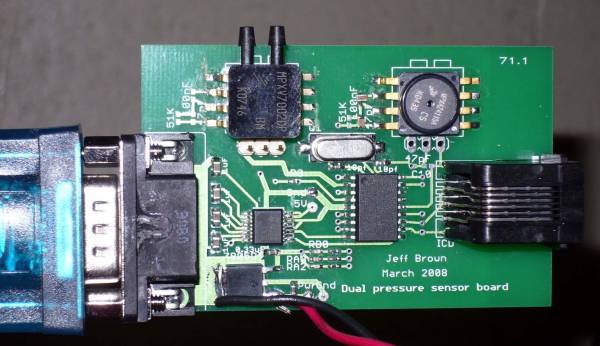

Dual pressure sensor board

PIC18F1320 Datasheet

RX on pin 3 TX on pin 2

Power ON
98.97 kPa,      742.3 Torr      ; 0814,0521
98.97 kPa,      742.3 Torr      ; 0814,0521
98.97 kPa,      742.3 Torr      ; 0814,0521

Reference

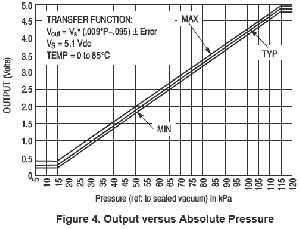

Barometer - MPXAZ4115A

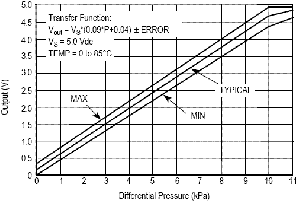

Pitot - MPX5010DP

MAX3227

I need to order the 296-19829-1-ND MAX3227E Datasheet

MAX3221 is the wrong chip, it only does +-5V 232 signals, I will need to remove and add the MAX3227

max3221-max3243.pdf

MAX233CPP Breakout board

WireFunction
Red5V
YellowRX (Data from computer)
BlueTX (Data to computer)
BlackGnd

Calculations

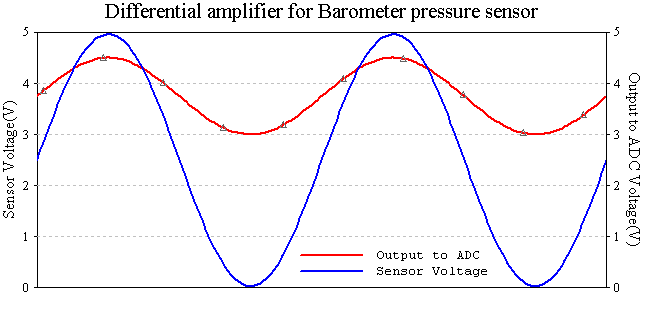

Op-Amp Circuit

  • Use an LM358 Op-Amp
  • 80 to 110 kilopascals » 3.125 to 4.475 Volts. 3 to 4.5 volt rate will give 77.3 to 110 KPa range.
