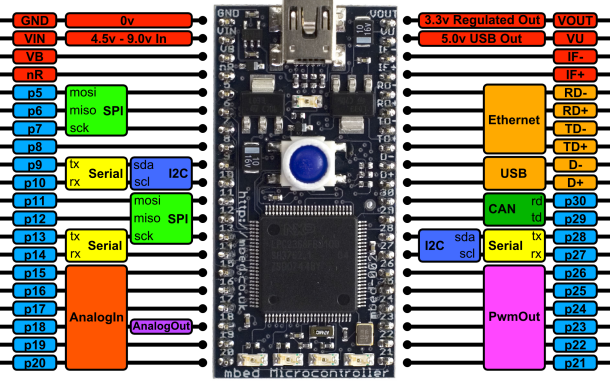

MBED
Ethernet

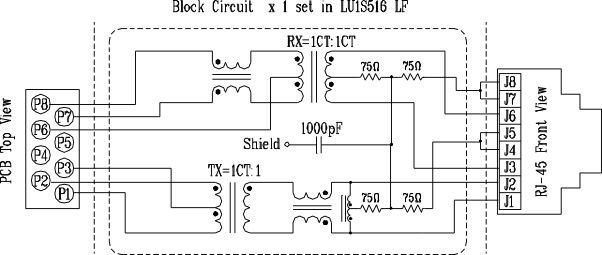

Magjack - lU1S516LF Datasheet
| Pin | mbed |
|---|---|
| P1 | RD+ |
| P2 | RD- |
| P3 | Vcc |
| P4 | n/c |
| P5 | n/c |
| P6 | Vcc |
| P7 | TD+ |
| P8 | TD- |
<HTML><BR CLEAR=ALL><BR></HTML>
First Project - Halloween Window Setup
Light Sensor
Possible IC to use: IVC102
