GPS
Haicom HI-406BT

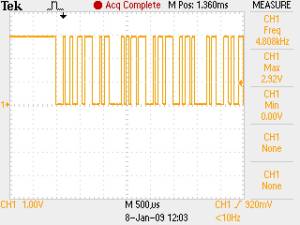

19200bps, 8N1 Serial Data
| Pin | Wire | Description |
|---|---|---|
| Blue | 3Vpk-pk serial data | |
| Orange | 3.3V | |
| Green | 3.3V | |
| Red | 0V |
Referenced to Ground
GPS Receiver Modules
- Lowrance LGC-12S - Owner's manual
- Earthmate Hyperformance GPS Receiver - Rockwell binary output only
- Jupiter - OEM Module
RTCM - DGPS Information
- INIT: $GPMSK,286.0,M,200,M
Trimble - OEM Module (Two)
- Port 1 - TSIP 9600-8O1
- Port 2 - NMEA 4800-8N1
- TrimbleMon from Trimble
The ACE II GPS power and data I/O functions are integrated into a single 8-pin header 0787connector, J3. The J3 connector uses 0.150 inch (3.8 mm) pins on 0.0787 inch (2 mm) spacing
| Pin # | Function | Description |
|---|---|---|
| 1 | TXD 2 | Port 2 transmit, CMOS/TTL |
| 2 | Prime Power | 5VDC ±5%, 150 mA typical |
| 3 | TXD 1 | Port 1 transmit, CMOS/TTL |
| 4 | Backup Power | +3.2VDC to +5.25VDC, 2μA typical |
| 5 | RXD 1 | Port 1 receive, CMOS/TTL |
| 6 | 1 PPS | Pulse-Per-Second, CMOS/TTL |
| 7 | RXD 2 | Port 2 receive, CMOS/TTL |
| 8 | GND | Ground, Power and Signal |
5V @ 200mA, less than 100 mV of ripple noise, peak to peak from 1Hz to 1MHz.
NMEA Reference Sites
Other Links
- Earthbridge - GoogleEarth GPS Interface
- VisualGPS - Diagnostic and drift monitoring
