X10 Interfacing

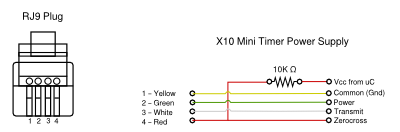

X10 Mini Timer power supply

The LCD display seems to die after a few years (on three units I've used) so I figured out the pinout. 4N35's are used internally for opto-isolation, The power is from a transformer internally, with a rectifier and a capacitor.
